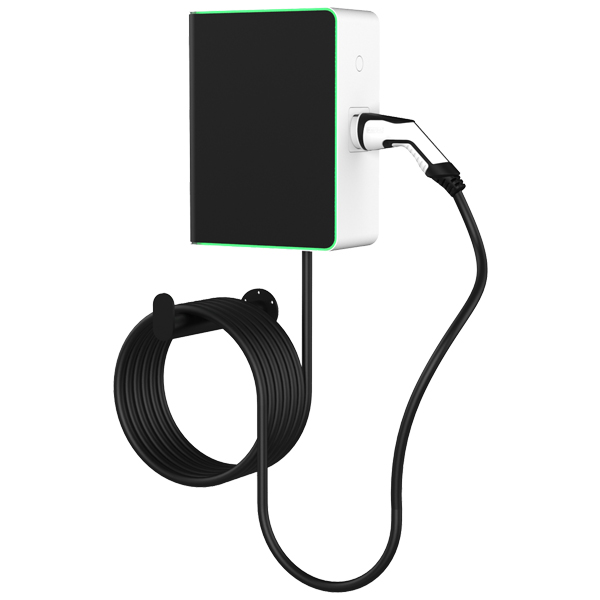

SP-22-H-Pro charging station

Advantages

• Metal, vandal-resistant case
• Convenient wall mounting system
• Easy integration into existing charging station networks via OCPP protocol
• Remote control via mobile app
• Multi-mode RGB light indication of charging status and process
• Modern design

Technical specifications

Input parameters

• Input voltage, phase and current type: 380/400 V, 3 phases, alternating current
• Input frequency: 50/60 Hz
• Maximum current: 32 A
• Power consumption: 22,2 kW
• Input connection type: screw connection

Output parameters

• Type of current: alternating current, AC
• Output power: up to 22 kW
• Output voltage: up to 400 V
• Output current: 32 A
• Charging mode: Mode 3
• Charging interface standard: STATE STANDARD (ГОСТ) R IEC 61851-1-2013 (IEC 61851-1)

Device dimensions

• Overall size (WxHxD), mm: 335х410х170

Additional parameters

• Protection class: IP40
• Case material: powder-coated steel
• Relative humidity during operation: 30% to 80% (without condensation)
• Grounding system type: TT/TN-S
• Type of default ports installed: GB/T (AC) cable
• Protection: protection against leakage currents, earthing monitoring
• Commutation: Ethernet, GSM
• Security: status-dependent locking control of the charging plug in the device, including emergency unlocking in case of power failure

Additional options

• Integrated Type 2 / Type 1 charging cable with a length of 3 to 5 meters or Type 2 socket
• Floor stand for station mounting
