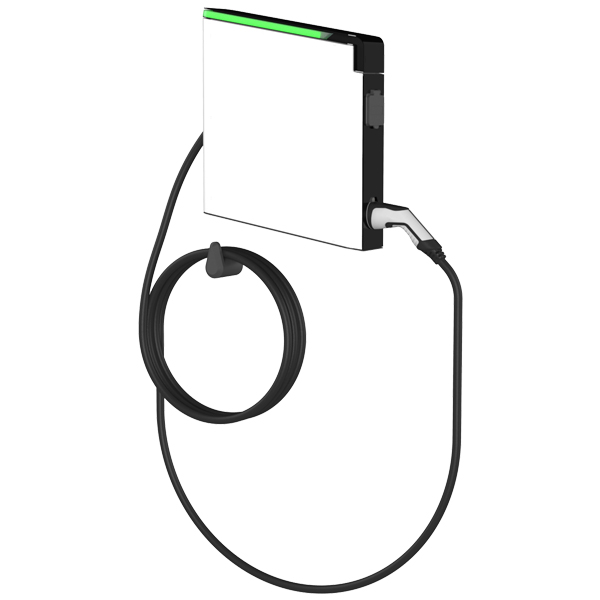

SP-22X2-wall charging station

SP-22X2-wall charging station

Advantages

  • Metal, vandal-resistant, all-weather outdoor case
  • Convenient wall mounting system
  • Easy integration into existing charging station networks via OCPP protocol
  • Remote control and payment via mobile app
  • Multi-mode RGB light indication of charging status and process
  • Unique design allows it to harmonize with modern urban infrastructure

Technical specifications

Input parameters

  • Input voltage, phase and current type: 380/400 V, 3 phases, alternating current
  • Input frequency: 50/60 Hz
  • Maximum current: 65 A
  • Power consumption: 45 kW
  • Input connection type: screw connection

Output parameters

  • Type of current: alternating current, AC
  • Output power: up to 44 kW (2 ports of 22 kW)
  • Output voltage: up to 400 V
  • Output current: 64 A (2 ports of 32 A)
  • Charging mode: Mode 3
  • Charging interface standard: STATE STANDARD (ГОСТ) R IEC 61851-1-2013 (IEC 61851-1)

Device dimensions

  • Overall size (WxHxD), mm: 440х560х145

Additional parameters

  • Protection class: IP54
  • Case material: powder-coated steel
  • Operating temperature: -35°C to +40°C
  • Relative humidity during operation: 30% to 80% (without condensation)
  • Temperature maintenance system inside the station: integrated climate control
  • Grounding system type: TT/TN-S
  • Type of default ports installed: Type 2 socket, GB/T cable (AC)
  • Protection: protection against leakage currents, earthing monitoring
  • Commutation: Ethernet, GSM
  • Security: status-dependent locking control of the charging plug in the device, including emergency unlocking in case of power failure

Additional options

  • Integrated Type 2 / Type 1 charging cable with a length of 3 to 5 meters or Type 2 socket
  • Floor stand for station mounting
